Recessed Pop Up Power Supplies® Slim IGU Pop Up Power IGU

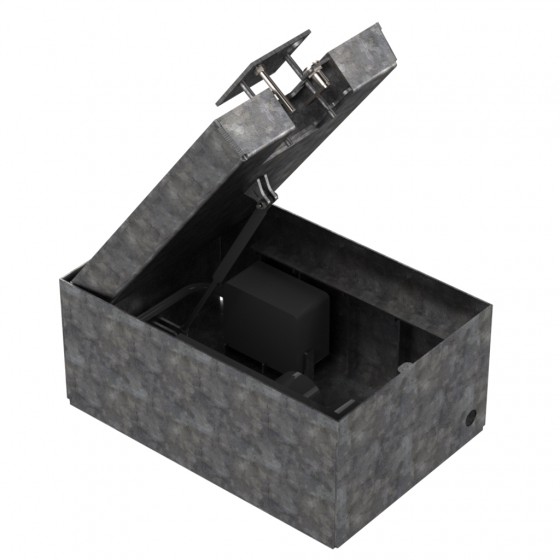

The In Ground Unit (IGU) provides round-the-clock power for days, weeks or even months on end. It minimises the potential for damage owing to vandalism and harsh weather because it operates unattended with the lid locked down, with only the power cable protruding.

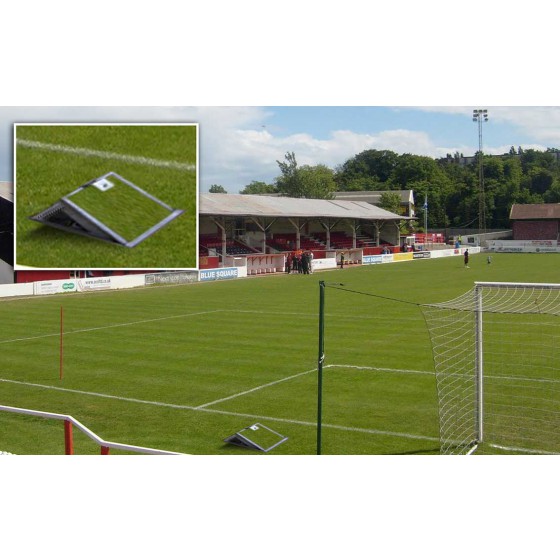

Suitable for market traders, open air events and areas where temporary power is required

Recessed lid to accept paving or alternative infill to blend in with surrounding area

IN GROUND UNIT SIZES AND DIMENSIONS

Name	Overall Size (mm)	Depth (mm)	Lid In-tray depth (mm) Income Supply
Slim	570×386	250	67 Single Phase Only

Technical Details

ELECTRICAL CONFIGURATIONS
- Quick secure around the clock access for days,weeks or even months on end
- Recessed lid to accept paving or any other infill to blend in with surrounding area
- Suitable for use in areas with light vehicle traffic,tested to EN124 B125 load classifi cation
- Security locking head and yellow safety tread plate as standard
- Manufactured to ISO 9001 quality management system
- Manufactured from BS EN 10025 S275 JR high grade structural steel plate to ensure longevity and stability under load
- Compliant with all accessibility regulations
- Galvanised to BS EN ISO 1461 to guarantee 55 micron minimum average zinc coating
- Bespoke versions available upon request

Options Available

Single phase with combination of 16 or 32amp socket options available

All our products shown can be adapted to suit customer requirements, send your enquiry to our dedicated sales and design team. We pride ourselves on our rapid service and customer deadlines are prioritised for a satisfactory outcome.
